Intel Arc Pro A40 Graphics

Introducing the next step up in professional GPU from Intel: the Intel Arc Pro A60 GPU. With built-in ray tracing hardware, graphics acceleration, and machine learning capabilities, the Intel Arc Pro A60 GPU unites fluid viewports, the latest in visual technologies, and rich content creation in a standard, single-slot form factor.

Say Hello to Pro GPU Choice

For many professional users, Intel equates to years of extensive trust and outstanding reliability, and this latest range of professional graphics continues to build on that. You may have been using Intel® integrated graphics for years, which makes moving to more powerful, dedicated graphics from Intel a clear choice.

You may think it’s only a new range of GPUs, but to us it’s bringing competition and innovation back to your favorite software tools.

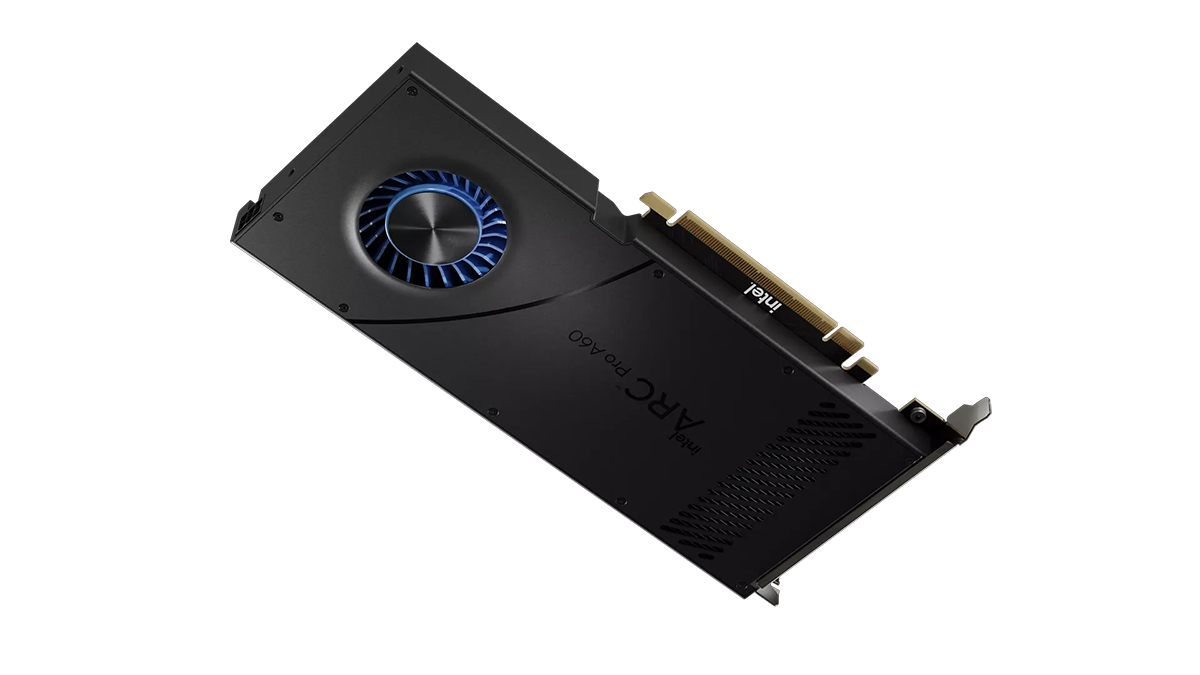

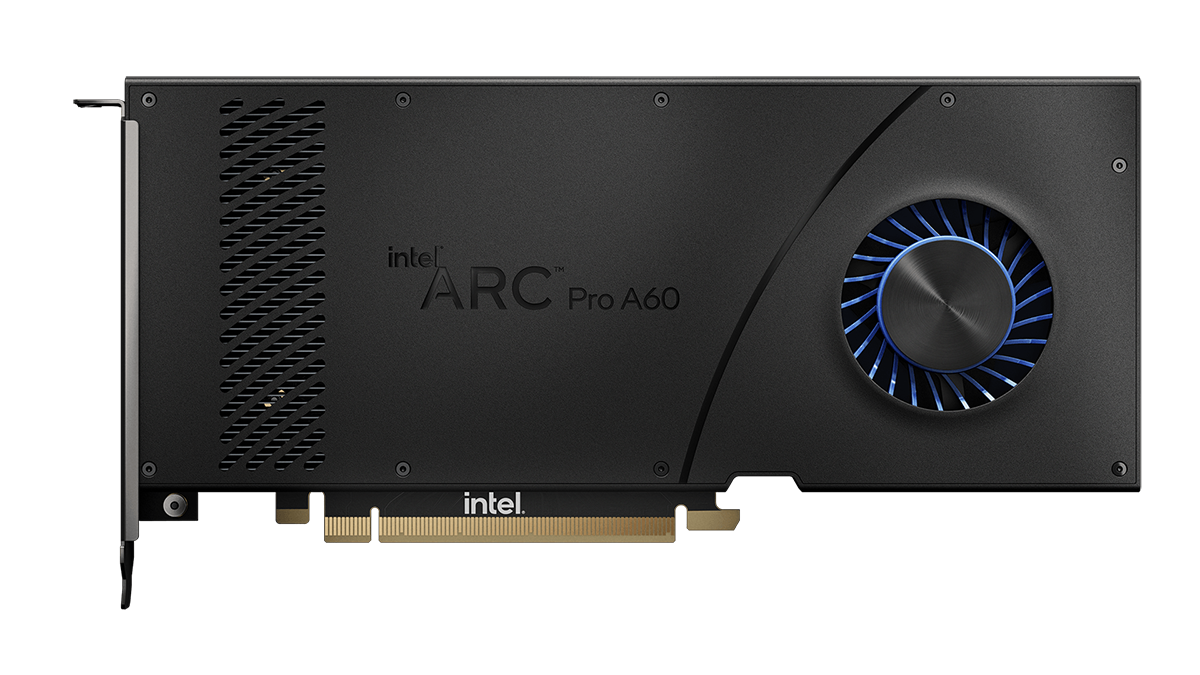

Intel Arc Pro A60 Graphics

Additional Ray Tracing

Double the High Speed Memory

More Dedicated AI Acceleration

Software Certifications

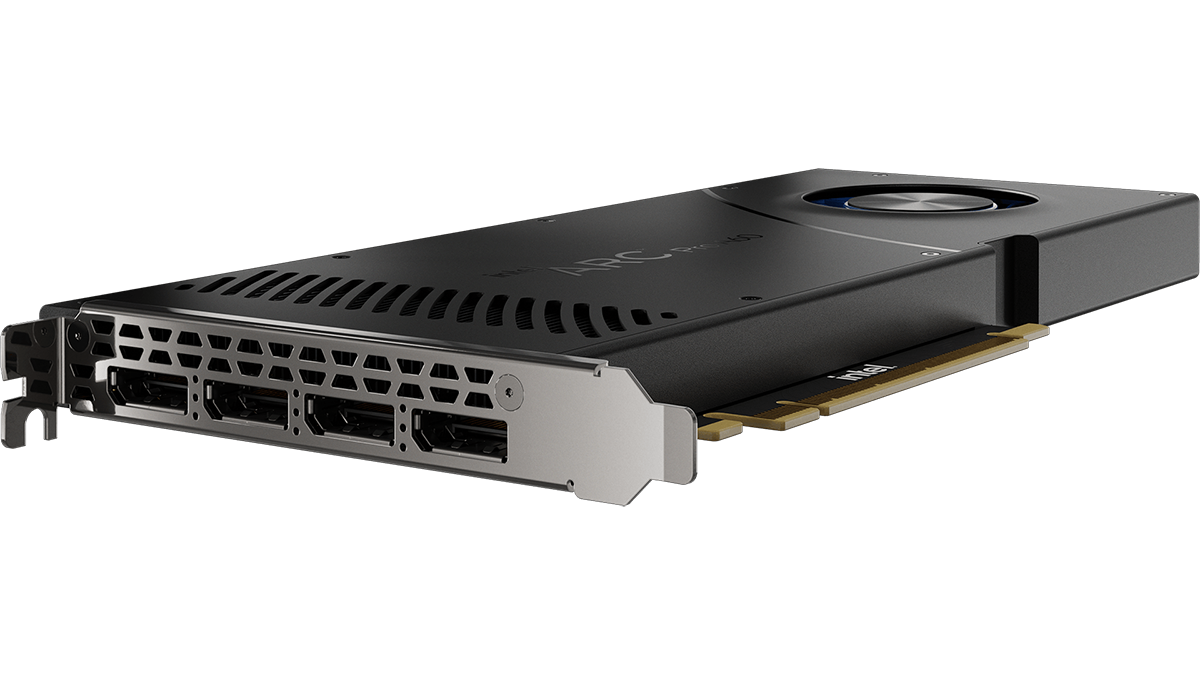

Up to Four Displays at 4K

Premium Components

Standard, Single Slot Form Factor

Intel Professionalism Inside

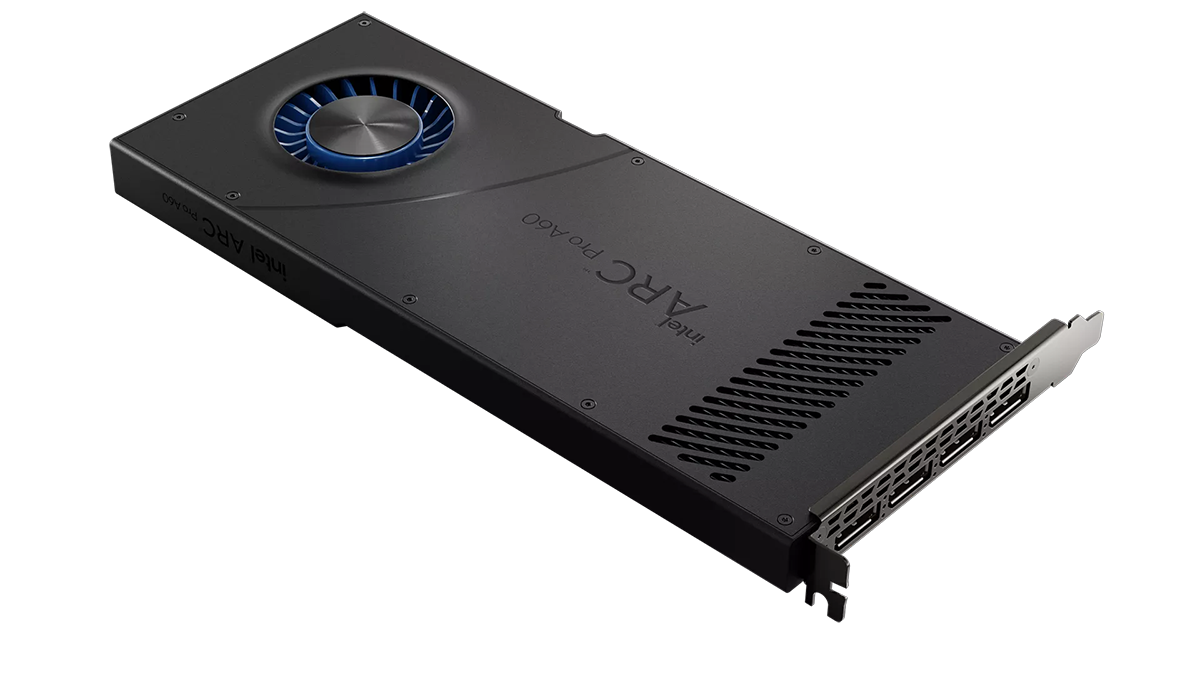

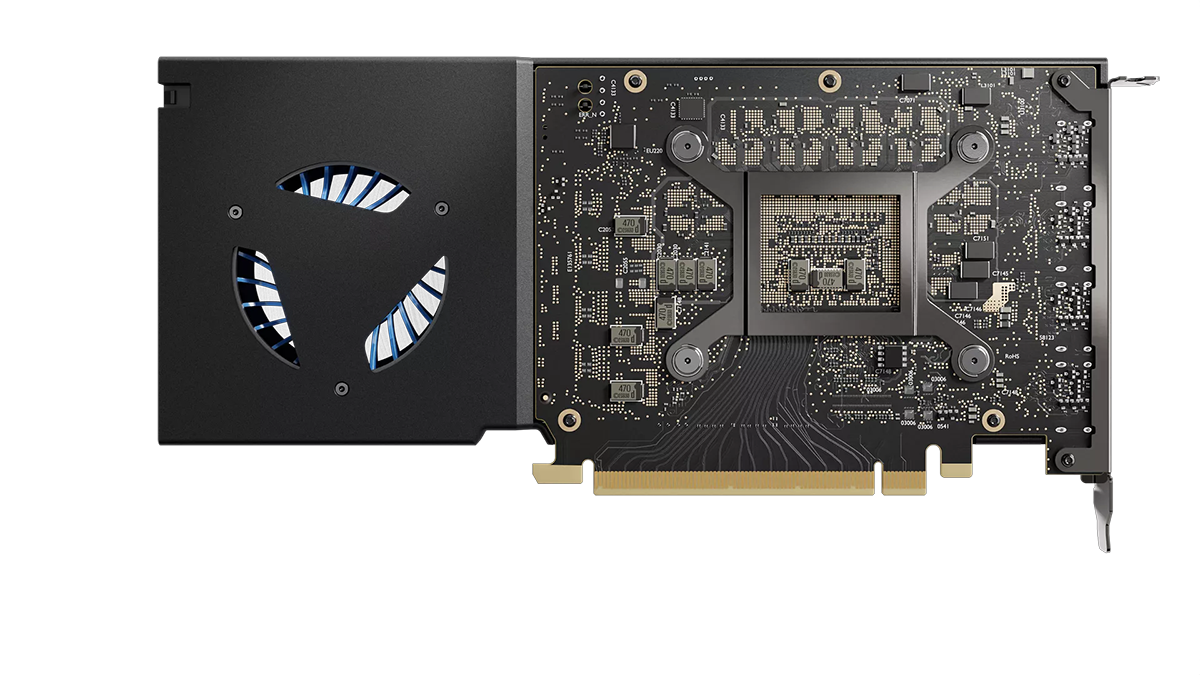

Everything about this graphics card shouts professional. Built with premium components—and to meet the expectations of our demanding premium workstation manufacturers—this graphics card is manufactured using techniques inspired by airplane fuselage fabrication. These techniques include a robust sheet-metal aluminum shroud, aluminum base plate, and dense 25x blade thermally-efficient high-speed axial fan that exhausts a high volume of hot air out of the card’s elegant vents and main system. All these features help ensure that the card, your system, and your software can run smoothly.

Key Features

Expertly Verified Software

Intel has worked hand-in-hand with hundreds of software companies over the years, and this unmatched experience goes into our professional Intel Arc Pro A-series graphics cards. Certifications and software workflow qualifications are as important to us as they are to you.

Ray Tracing Without the Premium

Graphics cards need to do more than push pixels to displays, they also need to accelerate the creation of beautiful, compute intensive imagery. Ray-tracing hardware technology built into Intel Arc Pro A-series graphics allows your compatible software to explore these new pro workflows, without the cost premium. Ray tracing is typically thought of as only available on expensive GPUs, but our latest graphics cards change this expectation.

More Large Displays with One Powerful Card

Despite the condensed forms, the latest Intel Arc Pro A-series GPUs can support multiple modern high resolution monitors. The Intel Arc Pro A60 GPU supports up to four ultra-large displays to enhance your workflow efficiencies Add high dynamic range (HDR) and audio support too and you have all you need for that next social-media-worthy home or office multi-display setup.

12GB of High-Performing Memory as Standard

The demands that professional software places on graphics cards continue to increase with each new software release. To combat this, we added 100%1 more memory than similar baseline offerings from the competition. More memory allows you to take on bigger video projects, tackle larger assembles, develop models and buildings, and work on detailed 4K imagery.

By including more high-speed memory, we help you achieve your large project vision.

More Memory Bandwidth Than the Others

The bandwidth of your graphics card is an important consideration. Get it wrong and you can slow down professional workflows. That’s why we made sure the Intel Arc Pro A60 GPU has support for modern PCIe* 4.0 x16 systems, without penalizing backwards compatibility. Graphics memory is further enhanced by almost 33% more2 high speed bandwidth than similar offerings from the competition, allowing project data to be accessed by your software even faster.

Specifications

Essentials
Product Collection	Intel Arc Pro A-Series Graphics
Model Number	Pro A60
Code Name	Products formerly Alchemist
Microarchitecture	Xe HPG
Lithography Type	TSMC N6
Vertical Segment	Desktop
Expected Discontinuance	July 2026
Warranty Period	3 yrs
Embedded Options Available	No
GPU Specifications
X^e-cores	16
Render Slices	4
Ray Tracing Units	16
Intel X^e Matrix Extensions (Intel XMX) Engines	256
X^e Vector Engines	256
Execution Units	256
Graphics Clock	2000 MHz
GPU Peak TOPS (Int8)	151
TBP	130 W
PCI Express Configurations^‡	Up to PCI Express 4.0 x 16
Device ID	0x56B3
Memory Specifications
Memory Size	12 GB
Memory Type	GDDR6
Graphics Memory Interface	192 bit
Graphics Memory Bandwidth	384 GB/s
Graphics Memory Speed	16 Gbps
I/O Specifications
# of Displays Supported^‡	4
Graphics Output^‡	eDP* 1.4, DP 2.0 up to UHBR 10*, HDMI 2.1, HDMI* 2.0b
VESA Adaptive Sync	Yes
Max Resolution (HDMI)^‡	4096 x 2160@60Hz
Max Resolution (DP)^‡	7680 x 4320@60Hz
Features
H.264 Hardware Encode/Decode	Yes
H.265 (HEVC) Hardware Encode/Decode	Yes
AV1 Encode/Decode	Yes
VP9 Bitstream & Decoding	Yes
Supported Technologies
Ray Tracing	Yes
oneAPI Support	Yes
OpenVINO Support	Yes
DirectX* Support	DirectX 12 Ultimate
Vulkan* Support	1.3
OpenGL* Support	Up to 4.6
OpenCL* Support	3.0
Multi-Format Codec Engines	2
Intel Deep Link Technologies
Intel Deep Link Hyper Compute^‡	Yes
Intel Deep Link Hyper Encode^‡	Yes
Intel Deep Link Stream Assist^‡	Yes

‡ This feature may not be available on all computing systems. Please check with the system vendor to determine if your system delivers this feature, or reference the system specifications (motherboard, processor, chipset, power supply, HDD, graphics controller, memory, BIOS, drivers, virtual machine monitor-VMM, platform software, and/or operating system) for feature compatibility. Functionality, performance, and other benefits of this feature may vary depending on system configuration.
“Announced” SKUs are not yet available. Please refer to the Launch Date for market availability.
**Designed for DP2.0, certification pending VESA CTS Release.

Acceleration

Full AV1 Support

Full AV1 hardware acceleration. Get 4.4x faster hardware encoding with Intel Arc graphics compared to software encoding.

Making AI Attainable and Faster

With 100% more dedicated X^e HPG cores than our other Pro A-series products, there’s a ton of great technology packed into this GPU range, including support for your compatible AI tools with built-in dedicated AI acceleration where you need it.

Compatible with Your Viewports

Professional software can use varying viewport API languages, which is why we optimize our graphics for a range of technologies. Working with long-established manufacturers, we aim to squeeze as much performance as possible out of the cards, while not disadvantaging overall stability.

The latest standard from Microsoft for high-resolution textures and ray tracing (DXR), improving visuals within the viewport and real-time software.

An API for Heterogeneous Computing (systems with more than one kind of processor or cores).

A cross-vendor, cross-platform API for 3D graphics and compute, Vulkan offers support for advanced features such as ray tracing.

Additional Features and Technologies

There’s more to a professional GPU than the hardware. Meet some of the Intel Deep Link innovations that you can get access to:

Hyper Compute

Enables multi-engine content creation by harnessing the combined power of Intel CPUs and GPUs to unleash even greater performance. Hyper Compute uses all available compute engines or AI accelerators on the Intel CPU and GPU platform for tasks such as machine learning services during image processing.

Dynamic Power Share

Intelligently routes power between the laptop CPU and GPU enabling a performance boost for your task. A unified power envelope governed by a smart algorithm allocates power between your Intel Core processor and your Intel Arc graphics card—whichever needs it most.

Hyper Encode

Helps you spend less time waiting for your project to export. Hyper Encode is made possible by the multiple media engines found on the Intel Core processor and Intel Arc graphics card working in conjunction inside your laptop or desktop system.

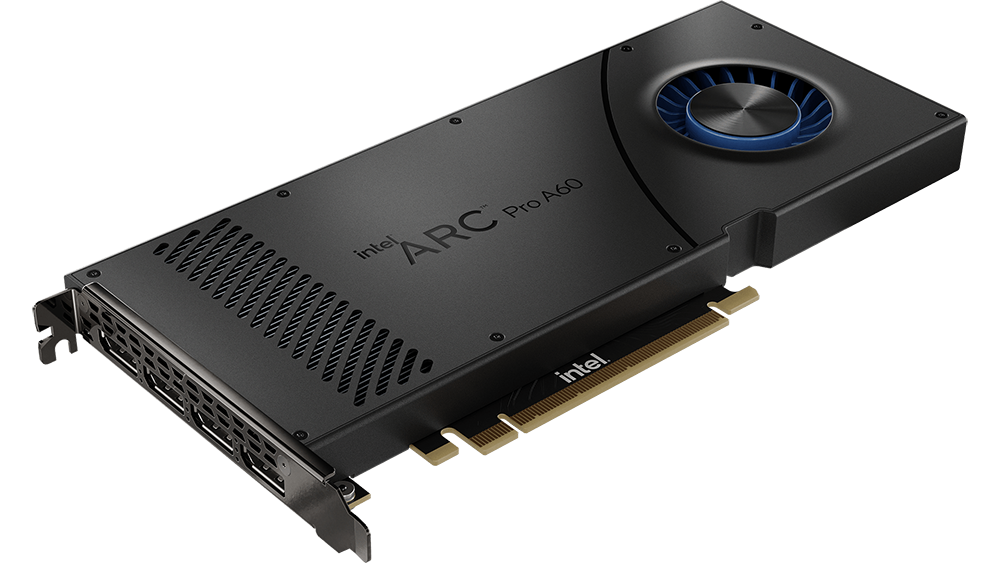

Intel Arc Pro A60 Graphics
Standard, Single Slot Form Factor
