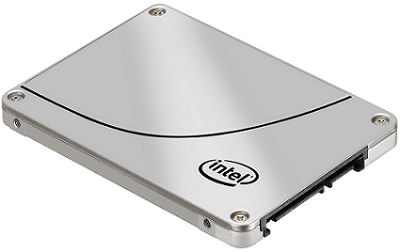

Intel Solid-State Drive DC S3500 Series
Consistently amazing

Overview:

The Intel^® SSD DC S3500 Series combines fast, consistent read performance with strong data protection and low active power levels to provide superior quality of service for video conferencing, big data analytics, or virtual client applications. Consistently low read latencies of 50µs typical (500µs max for 99.9% of the time) along with a tight distribution of up to 75,000 input/output per second (IOPS)¹ delivers a high-performance, reliable, and efficient SSD specifically designed for data center application upgrades.

Key features and benefits of this drive include an Intel^® 3rd generation controller, industry-leading 20nm multi-level cell (MLC) NAND flash technology, full end-to-end data protection, enhanced power-loss data protection, and a broad range of capacities up to 800GB.

Premier Performance, Protection, and Optimization for the Data Center
The Intel^® Solid-State Drive DC S3500 Series offers the next generation of data center SSDs combining fast consistent read performance with strong data protection, and leading edge 20nm flash technology.

Fast and Consistent Performance
Deliver data at a rapid pace, with consistently low latencies and tight IOPS distribution.
The Intel^® Solid-State Drive DC S3500 Series delivers superior Quality of Service for applications such as video streaming/conferencing, virtual client support, and big data analytics. All of these applications benefit from 50µs typical latency with max read latencies² of 500µs for 99.9% of the time and 4KB random read performance of up to 75,000 input/output operations per second (IOPS)¹. Performance delivered with low active read power (less than 1.3 watts¹) means this Intel SSD helps improve data center efficiency with reduced energy costs—making it an excellent value for data center storage application upgrades!

Stress-free Data Protection
Protect your data center applications with multiple security checkpoints providing protection against data loss and corruption. The Intel^® SSD DC S3500 Series combines the following features to provide an SSD you can count on.

Full End-to- End Data Protection. Protects your data from the time it enters the drive to the time it leaves. The Intel^® SSD DC S3500 Series uses an advance error correction scheme that ensures data integrity by protecting against possible data corruption in the NAND, SRAM, and DRAM memory. The Intel^® SSD DC S3500 Series also protects the data in transit through several techniques such as parity checks, Cyclic Redundancy Checks (CRC) and LBA tag validation. Once an error is detected, an immediate attempt will be made to correct it, and any uncorrectable error will be reported to the host. To further improve data assurance, the Intel^® SSD DC S3500 Series provides data redundancy technology to minimize potential data loss.

Product Spotlight

• Fast and Consistent Performance
• Full End to End Data Protection
• Enhanced Power-Loss Data Protection
• Latest 20nm MLC NAND Flash Memory Technology
• Intel based controller technology

Enhanced Power-Loss Data Protection. Reduces potential data loss by detecting and protecting data from an unexpected system power loss. The drive saves all cached data in the process of being written prior to shutting down, thereby reducing potential data loss.

Optimized for Efficiency
Reduce the strain on tight IT budgets with leading Intel technologies. By combining the latest 20nm Multi-Level Cell (MLC) NAND flash memory technology with Intel’s latest SSD controller technology, the Intel^® SSD DC S3500 Series delivers fast and consistent performance, reduced power consumption and stress-free data protection. Optimize your dollars per IOP, energy costs, and floor space in your data center with the amazingly efficient Intel^® SSD DC S3500 Series.

Solid-State Computing Starts with Intel Inside^®. For more information, visit www.intel.com/go/ssd

Technical Specifications:

Intel Solid-State Drive DC S3500 Series
Technical Specifications1
Model Name	Intel® Solid-State Drive DC S3500 Series
Capacity	2.5”: 80GB, 120GB, 160GB, 240GB, 300GB, 480GB, 600GB and 800GB 1.8”: 80GB, 240GB, 400GB and 800GB
NAND Flash Memory	20nm Intel® NAND Flash Memory Multi-Level Cell Compute-Quality Components Bandwidth2 Sustained Sequential Reads / Writes
Bandwidth2	Sustained Sequential Reads / Writes 2.5” 80GB: up to 340 / 100 MB/s 2.5" 120GB: up to 445 / 135 MB/s 2.5" 160GB: up to 475 / 175 MB/s 2.5" 240GB: up to 500 / 260 MB/s 2.5" 300GB: up to 500 / 315 MB/s 2.5" 480GB: up to 500 / 410 MB/s 2.5" 600GB: up to 500 / 410MB/s 2.5" 800GB: up to 500 / 450 MB/s 1.8" 80GB: up to 340 / 100 MB/s 1.8" 240GB: up to 500 / 260 MB/s 1.8" 400GB: up to 500 / 380MB/s 1.8" 800GB: up to 500 / 450 MB/s
Read / Write Latency	50 µs / 65 µs
Random I/O Operations per Second	4KB Reads / Writes 2.5” 80GB: up to 70,000 IOPS / 7,000 IOPS 2.5” 120GB: up to 75,000 IOPS / 4,600 IOPS 2.5” 160GB: up to 75,000 IOPS / 7,500 IOPS 2.5” 240GB: up to 75,000 IOPS / 7,500 IOPS 2.5” 300GB: up to 75,000 IOPS / 9,000 IOPS 2.5” 480GB: up to 75,000 IOPS / 11,000 IOPS 2.5” 600GB: up to 75,000 IOPS / 11,000 IOPS 2.5” 800GB: up to 75,000 IOPS / 11,500 IOPS 1.8” 80GB: up to 70,000 IOPS / 7,000 IOPS 1.8” 240GB: up to 75,000 IOPS / 7,500 IOPS 1.8” 400GB: up to 75,000 IOPS / 11,000 IOPS 1.8” 800GB: up to 75,000 IOPS / 15,500 IOPS
Interface	SATA 6Gb/s, compatible with SATA 3Gb/s and1.5Gb/s.
Form Factor, Height and Weight	2.5 inch and 1.8” Industry Standard Form Factor Height: 2.5” 7.0 mm thick; 1.8” 5 mm thick Weight: 2.5” 80GB - 240GB: 70 grams ± 2 grams 2.5” 300GB - 800GB: 72 grams ± 2 grams; 1.8” 80GB: 35 grams ± 2 grams 1.8” 240-800GB: 37 grams ± 2 grams
Life Expectancy	2 million hours Mean Time Between Failures (MTBF)
Lifetime Endurance3	Up to 450TB Written
Usage4	24/7 operation
Power Consumption	Read: 1.3 W Typical Write: 5.0 W Typical Idle: 650 mW Typical
Operating Temperature	0° C to 70° C
RoHS Compliance	Meets the requirements of European Union (EU) RoHS Compliance Directives
Product Health Monitoring	Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T.) commands
Product Ordering Information	To order, visit intel.com/go/ssd

1. Based on the Intel® SSD DC S3500 Series Product Specification.
2. Device measured using Iometer with 4K Random Writes QD=32 across 100% span of the drive. Latency measured using write transfer size of 4KB (4,096 bytes) and queue depth set to 1.
3. Based on JESD218 standard with JESD219 workload
4. Based on JESDEC SSD standard JC64.8
