Intel Solid-State Drive 750 Series
Performance Unleashed

Overview:

Uncompromised Performance

Don’t settle for second best. Maximize your computing experience with the Intel® Solid-State Drive 750 Series. By combining four lanes of PCIe 3.0 with state-ofthe-art NVMe interface, the 750 Series delivers exceptional throughput performance and latency in a client PC SSD. The 750 Series is truly an industry leader; utilizing NVM Express™ allows the 750 Series to shed the burden of legacy AHCI commands. The Intel SSD 750 Series Add-In-Card (AIC) and 2.5-inch form factors enable performance not currently possible in form factors restricted by size or power

NVM Express™

Industry Leading Storage Interface† Introducing Intel’s first client-focused NVMe SSD. NVM Express (NVMe) is a standard specification architected from the ground up for Non-Volatile Memory (NVM). NVMe significantly improves both random and sequential performance over SATA-based drives† by reducing latency, enabling high levels of parallelism, and streamlining the storage command set. NVMe provides a standardsbased approach enabling broad ecosystem adoption for PCIe SSD interoperability.

Intel has worked closely with industry ecosystem partners to bring NVMe to the PC Client and Workstation market with a bootable, easy to use, plug-n-play solution.

The uncompromising performance of the 750 Series enables you to design and build richer content with larger data sets, textures or assets.

The 750 Series offers increased efficiency for engineering workloads: Computer Aided Drafting and Design (CADD), Computational Fluid Dynamics (CFD), Finite Element Analysis (FEA), and Simulation.

Add-in-Card and 2.5-inch SFF

Two Form Factors for Flexibility and Ease of Integration. With both Add-in-Card and 2.5” form factors, the 750 Series eases migration from SATA to PCIe 3.0 without power or thermal limitations on performance. This allows the SSD to deliver the ultimate in performance in a variety of system form factors and configurations.

Add-in-Card. The Intel SSD 750 Series Add-in-Card (AIC) offers a dynamic solution for current and future systems with an accessible PCIe 3.0 slot.

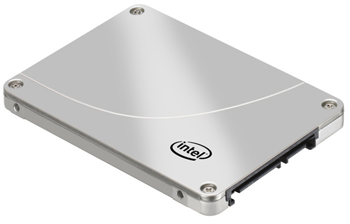

2.5-inch Small Form Factor. The Intel SSD 750 Series 2.5-inch SFF provides a cabled solution where an accessible PCIe 3.0 slot is not available and the motherboard has been provisioned with an SFF8643 connector. This solution is attractive for small form factor and multi-GPU systems where space is a premium. This flexibility also provides a viable direct attach solution for small form designs with an SFF-8639 connector on board.

Technical Specifications:

Intel® Solid-State Drive 750 Series Technical Specifications
Model Name	Intel® Solid-State Drive 750 Series
Capacity(GB)2	Half-Height Half-Length (HHHL) Add-in-Card (AIC): 400GB and 1.2TB 2.5-inch Small Form Factor 8639: 400GB and 1.2TB
NAND Flash Memory	20nm Intel® NAND Flash Memory Multi-Level Cell (MLC)
Bandwidth2, 3	Add-in Card	2.5-inch (SFF 8639)
	400GB: up to 2200 / 900 MB/s	400GB: up to 2200 / 900 MB/s
	1.2TB: up to 2400 / 1200 MB/s	1.2TB: up to 2400 / 1200 MB/s
Read/Write Latency	20 µs / 20 µs
Random I/O Operations per Second	Add-in Card	2.5-inch (SFF 8639)
	400GB: up to 430,000 / 230,000 MB/s	400GB: up to 430,000 / 230,000 MB/s
	1.2TB: up to 440,000 / 290,000 MB/s	1.2TB: up to 440,000 / 290,000 MB/s
Interface	PCIe 3.0 X4
Form Factor, Height and Weight	Add-in Card	2.5-inch (SFF 8639)
	68.9mm / 18.74mm / 168mm up to 195 grams	15mm / 70mm / 101mm / up to 125 grams
Life Expectancy	1.2 million hours Mean Time Between Failures (MTBF)
Lifetime Endurance	70GB Writes per Day
Power Consumption Typical	400GB	1.2TB
	Active Read: 9W	10W
	Active Write: 12W	22W
	Idle: 4W	4W
Product Health Monitoring	Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T.) commands
Operating Temperature	0° C to 70° C
RoHS Compliance	Meets the requirements of European Union (EU) RoHS Compliance Directives

1 Based on Intel® SSD 750 Series Product Specification: http://www.intel.com/content/www/us/en/solid-state-drives/ssd-750-spec.html
2 Performance measured by Intel using IOMeter* 1.1.0 with queue depth 32. Measurements are performed on 8 GB of Logical Block Address (LBA) range on a full SSD.
3 All documented endurance test results are obtained in compliance with JESD218 Standards. See www.jedec.org for detailed definitions of JESD218 Standards.

Documentation:

Download the Intel Solid-State Drive 750 Series (PDF).

Download the Intel Solid-State Drive 750 Series Specs (PDF).
