Intel Solid-State Drive 535 Series
The Next Level of Consumer Computing

Overview:

Intel Evolving Storage Technology

Intel® Solid-State Drives (Intel® SSDs) continue to evolve with the introduction of the Intel® SSD 535 Series.

Designed for a wide range of consumer and embedded platforms, including Ultrabook™, traditional desktops and laptops, mini computers, and digital signage, as well as the latest tablets and small form factor mobile systems, Intel Solid-State Drive 535 Series combines high quality, reliable performance and low power consumption for space conscious computing.

Small Form Factors

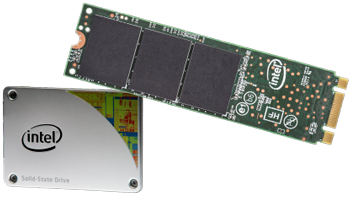

The Intel SSD 535 Series M.2 form factor delivers outstanding performance for thin and light computing devices. Intel’s SSD M.2 form factor requires far less space than a traditional 2.5- inch form factor storage device. Intel SSD 535 Series is also available in traditional 2.5-inch form factors, providing a variety of solid-state technology solutions.

The Intel SSD 535 series product line is available in capacities ranging from 120GB to 480GB.

Latest NAND Technology

Intel SSD 535 Series uses the latest 16nm NAND technology. You will also benefit from the high quality and reliability you’ve come to expect from Intel. Along with power and space savings, reliability, and peace of mind, the Intel SSD 535 Series comes with Intel’s outstanding customer support and 5-year limited warranty

World-Class Reliability with the latest NAND Technology

With the Intel® SSD 535 Series using the latest 20nm Intel NAND technology.

you also benefit from the high quality and reliability you’ve come to expect from Intel. In addition to the power, space savings, reliability, and peace of mind, the Intel SSD 535 Series is supported with Intel’s outstanding warranty and customer support.

A New Generation of Power Efficient Performance

With the Intel SSD 535 Series, your computer will effortlessly manage demanding consumer client applications and easily handle intense multi-tasking.

The Intel SSD 535 Series accelerates platform performance with sequential reads of up to 540 megabytes and sequential writes of up to 490 megabytes per second (MB/s) and random read and write input/output operations (IOPS) of up to 48K and 80K respectively.

In addition to strong performance gains, Intel SSD 535 Series provides extended battery life through low power modes. Idle power consumption of Intel SSD 535 Series is reduced by >90% over a typical hard disc drive, thereby reducing power consumption from watts to milliwatts. When the Intel SSD 535 Series is coupled with a 4 th or 5 th generation Intel® Core-based platform, advanced power mode settings reduce power dissipation another order of magnitude – from milliwatts to microwatts.

Product Spotlight

• High performance for demanding applications
• High quality and reliability
• Low power consumption
• Space-conscious form factors
• 16nm NAND technology
• Wide range of capacities

Technical Specifications:

Intel® Solid-State Drive 535 Series Technical Specifications
Model Name	Intel® Solid-State Drive 535 Series
Capacity(GB)2	M.2–120, 180, 240, 360; 2.5” –120, 180, 240, 360, 480
NAND Flash Memory	16nm Intel® NAND Flash Memory Multi-Level Cell (MLC)
Bandwidth2, 3	Form Factor Capacity Point	Sequential Read (up to)	Sequential Write (up to)	Random Read (up to)	Random Write (up to)
	M.2 80GB, 120GB, 180GB, 360GB	540 MB/s	490 MB/s	45K IOPs	80K IOPs
	2.5” 80GB, 120GB, 180GB, 240GB, 360GB, 480GB	540 MB/s	490 MB/s	48K IOPs	80K IOPs
Interface	SATA 6Gb/s, compatible with SATA 3Gb/s
Form Factor, Height and Weight	Form Factor		Height/Weight
	M.2 (80mm)		Up to 3.58mm / up to 10 grams
	2.5”		Up to 7mm / up to 78 grams
Life Expectancy	1.2 million hours Mean Time Between Failures (MTBF)
Power Consumption M.2	Active: 140 mW Typical6	Idle: 55 mW Typical7		DevSleep: 200µW
Power Consumption 2.5”	Active: 165 mW Typical6	Idle: 55 mW Typical7		DevSleep: 5mW
Operating Temperature	0° C to 70° C
RoHS Compliance	Meets the requirements of European Union (EU) RoHS Compliance Directives

1 Based on the Intel® Solid-State Drive 535 Series Product Specifications.
2 All capacities and form factors will not be available at launch.
3 Performance varies by capacity and is measured using Iometer* with Queue Depth 32.
4 Performance measured using Iometer with Queue Depth 32. Measurements are performed on 8GB of logical block address (LBA) range on a full SSD.
5 Active power measured during execution of MobileMark* 2007 Workload with SATA Link Power Management (LPM) enabled.
6 Idle power defined as SSD at idle with SATA Link Power Management (LPM) enabled.
